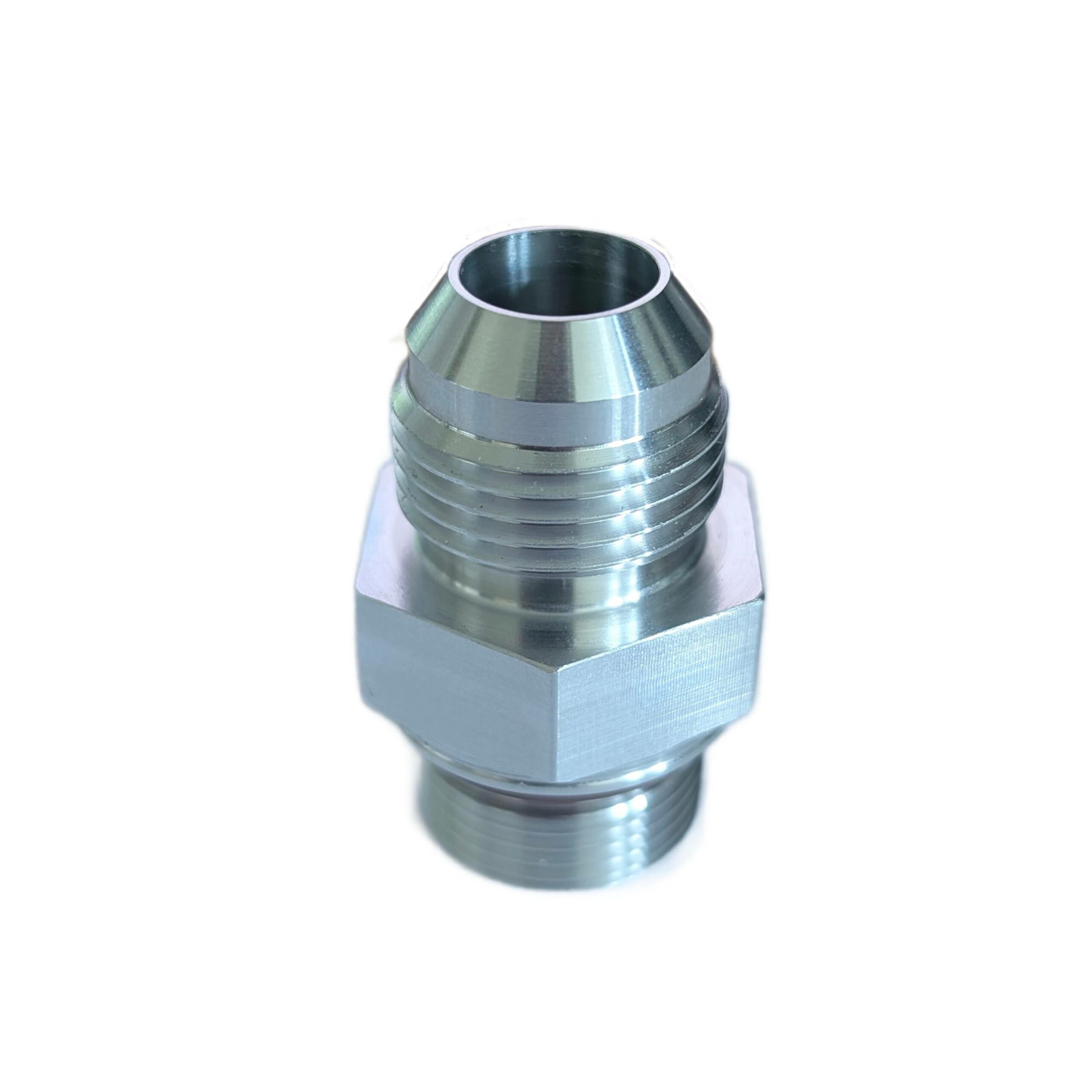

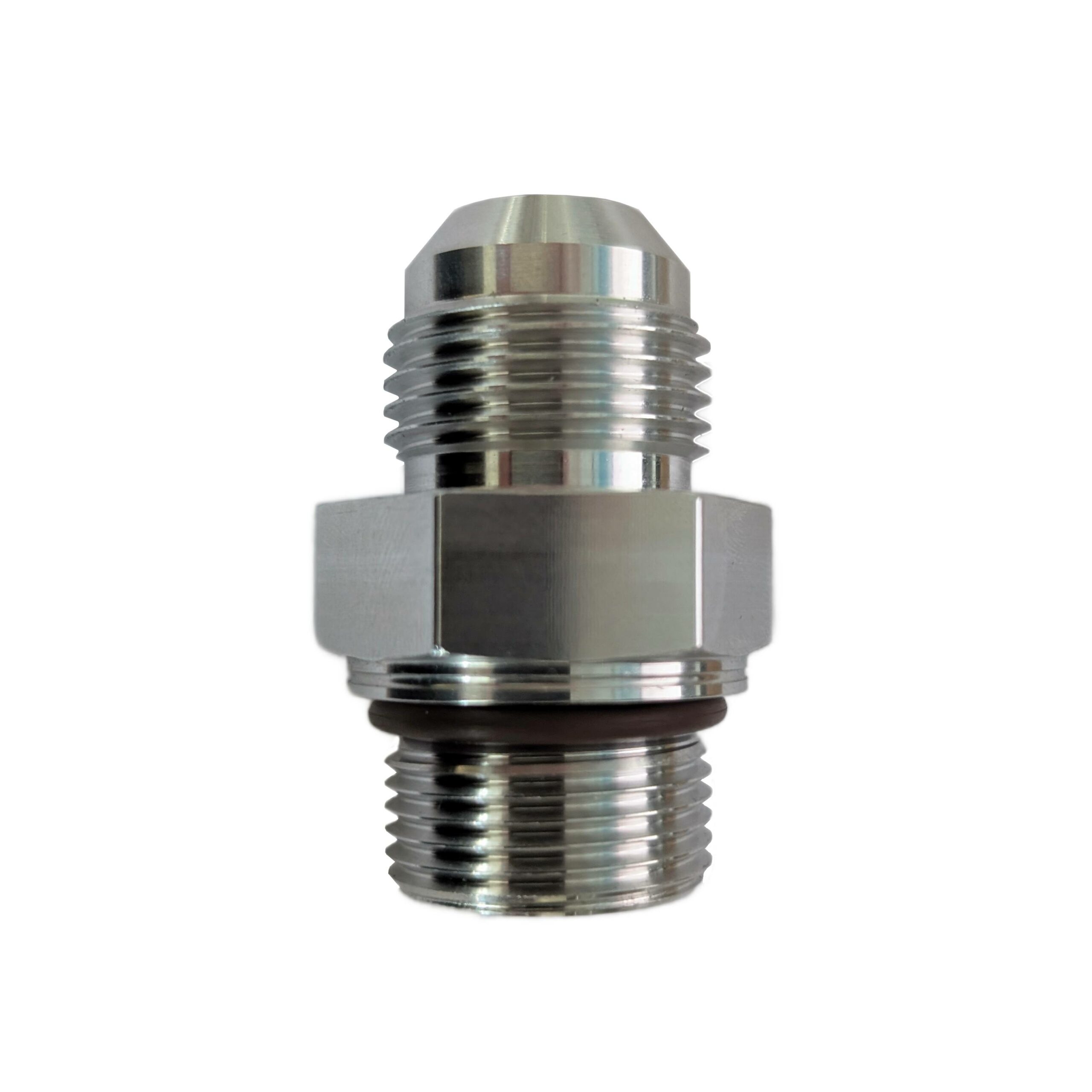

MODESTY M22 x 1.5 to AN10 Oil Fitting with ISO 6149 O-ring sealing interface

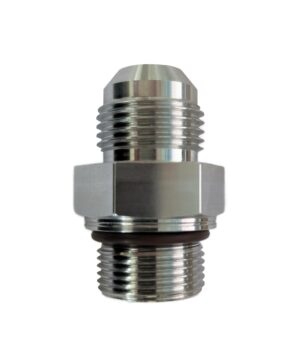

MODESTY M22 x 1.5 ISO6149 to AN-10 / JIC-10 Oil Fitting - Image 2

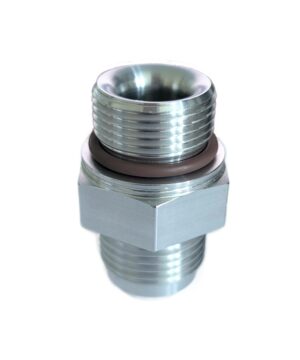

MODESTY M22 x 1.5 ISO6149 to AN-10 / JIC-10 Oil Fitting - Image 3

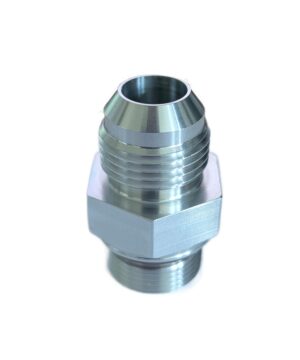

MODESTY M22 x 1.5 ISO6149 to AN-10 / JIC-10 Oil Fitting - Image 4

MODESTY M22 x 1.5 ISO6149 to AN-10 / JIC-10 Oil Fitting - Image 5

MODESTY M22 x 1.5 ISO6149 to AN-10 / JIC-10 Oil Fitting

Name: M22 x 1.5 to AN10 Oil Fitting – ISO 6149 | MODESTY
SKU: MPK-OFA-1
Price: 27.99 GBP
Availability: InStock

A motorsport-grade M22 x 1.5 to AN10 / JIC-10 oil fitting, precision-machined from aluminium and designed to complement the MODESTY Ford Duratec Remote Oil Filter Plate.

Featuring ISO 6149 high-pressure port sealing geometry, the fitting uses a dedicated O-ring sealing interface rather than relying on thread sealant, crush washers or bonded seals. Engineered for secure, repeatable connections in demanding motorsport oil systems.

£27.99 £23.33 Ex VAT

In stock

The MODESTY M22 x 1.5 to AN10 Oil Fitting is a precision-machined aluminium adapter designed to connect compatible M22 x 1.5 ISO 6149 ports to AN-10 / JIC-10 oil lines. Developed for motorsport oil systems, it provides a compact, lightweight connection suitable for remote oil filtration and external cooling applications.

Designed to complement the MODESTY Ford Duratec Remote Oil Filter Plate, the fitting incorporates a dedicated O-ring sealing interface engineered for demanding fluid-system applications.

ISO 6149 High-Pressure Port Design

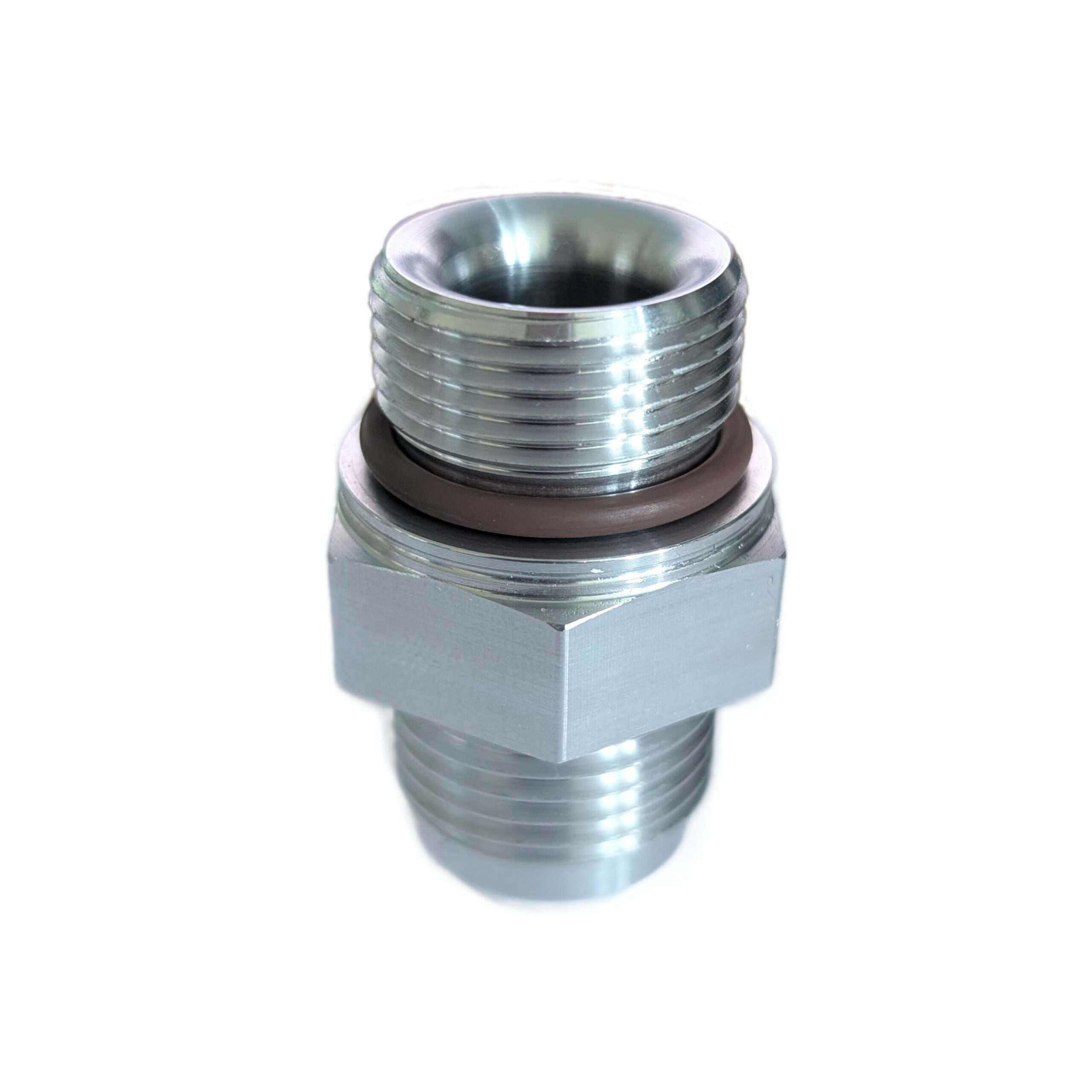

The fitting uses ISO 6149 sealing geometry, incorporating a purpose-engineered O-ring interface rather than relying on thread sealant, crush washers or bonded seals to form the primary seal.

The O-ring seals against the machined port interface, providing a controlled and repeatable connection when installed into a compatible ISO 6149 female port. This arrangement is particularly suited to oil systems exposed to sustained temperatures, pressure cycles and vibration.

ISO 6149 specifies working pressures up to 63 MPa (630 bar) for applicable connection configurations, subject to port size, materials, design and operating conditions. This does not represent a verified working-pressure rating for the complete MODESTY fitting or assembled oil system.

Key Features

M22 x 1.5 to AN-10 / JIC-10 — Straight adapter for compatible metric oil ports and AN-10 oil lines.
ISO 6149 O-Ring Sealing — Dedicated sealing interface without reliance on thread sealant, crush washers or bonded seals.
Precision-Machined Aluminium — Lightweight, durable construction for motorsport applications.
MODESTY Filter Plate Compatibility — Designed for the M22 x 1.5 ISO 6149 ports on the MODESTY Ford Duratec Remote Oil Filter Plate.
Remote Filtration & Cooling — Supports connection to suitable external oil filter housings and oil coolers.

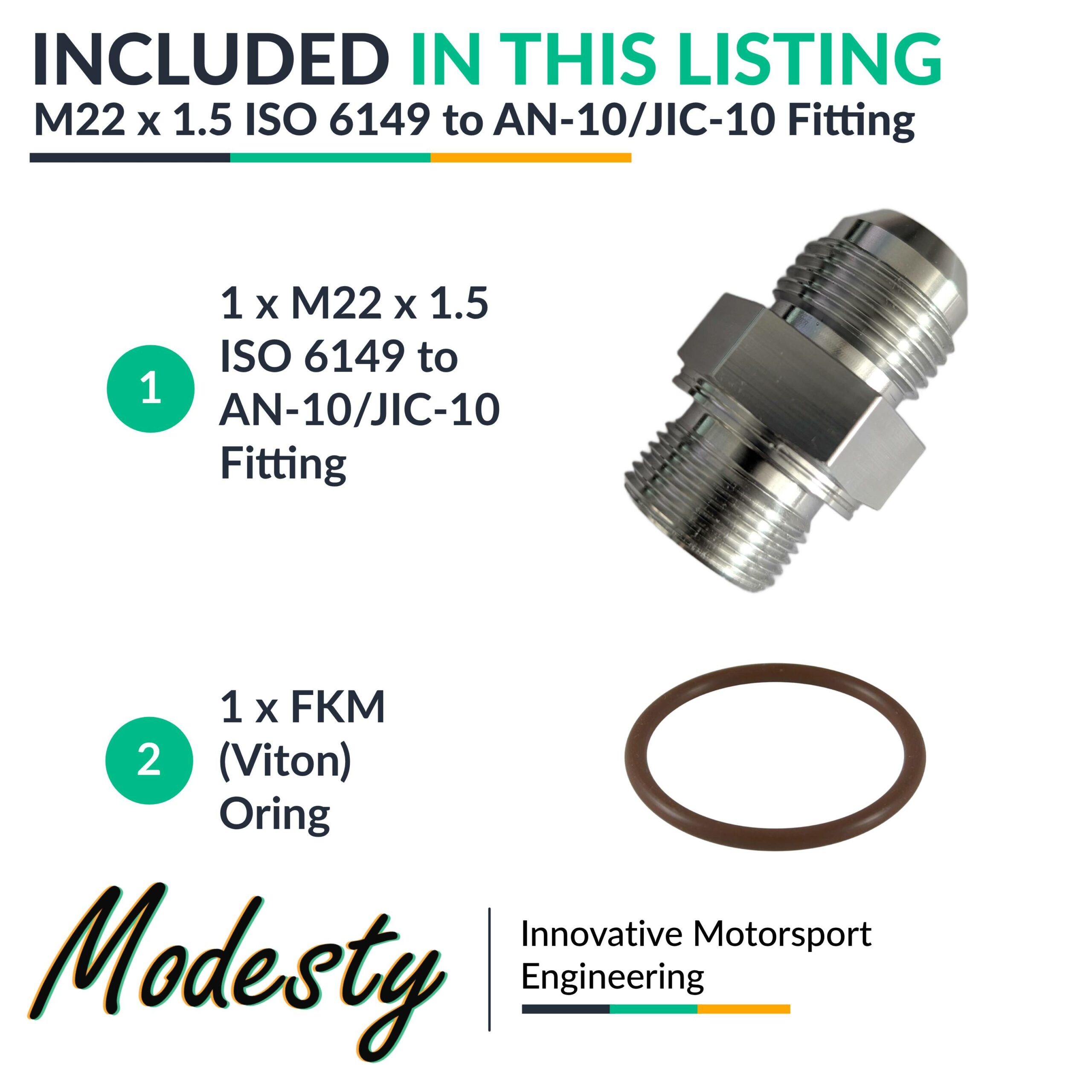

What’s Included

1x MODESTY M22 x 1.5 ISO 6149 to AN-10 / JIC-10 Oil Fitting

Important Installation Information

Please Note

This listing is for one M22 x 1.5 ISO 6149 to AN-10 / JIC-10 oil fitting only. The MODESTY filter plate, oil lines, remote filter housing and oil cooler are not included.

The M22 x 1.5 connection requires a compatible ISO 6149 female port. Thread size alone does not guarantee sealing compatibility.

Verify the correct O-ring specification, fitting compatibility and sealing condition before installation. Check all connections for leaks before operation.

Designed for motorsport and performance applications. Installation should be carried out by a suitably competent professional.
